Specifications

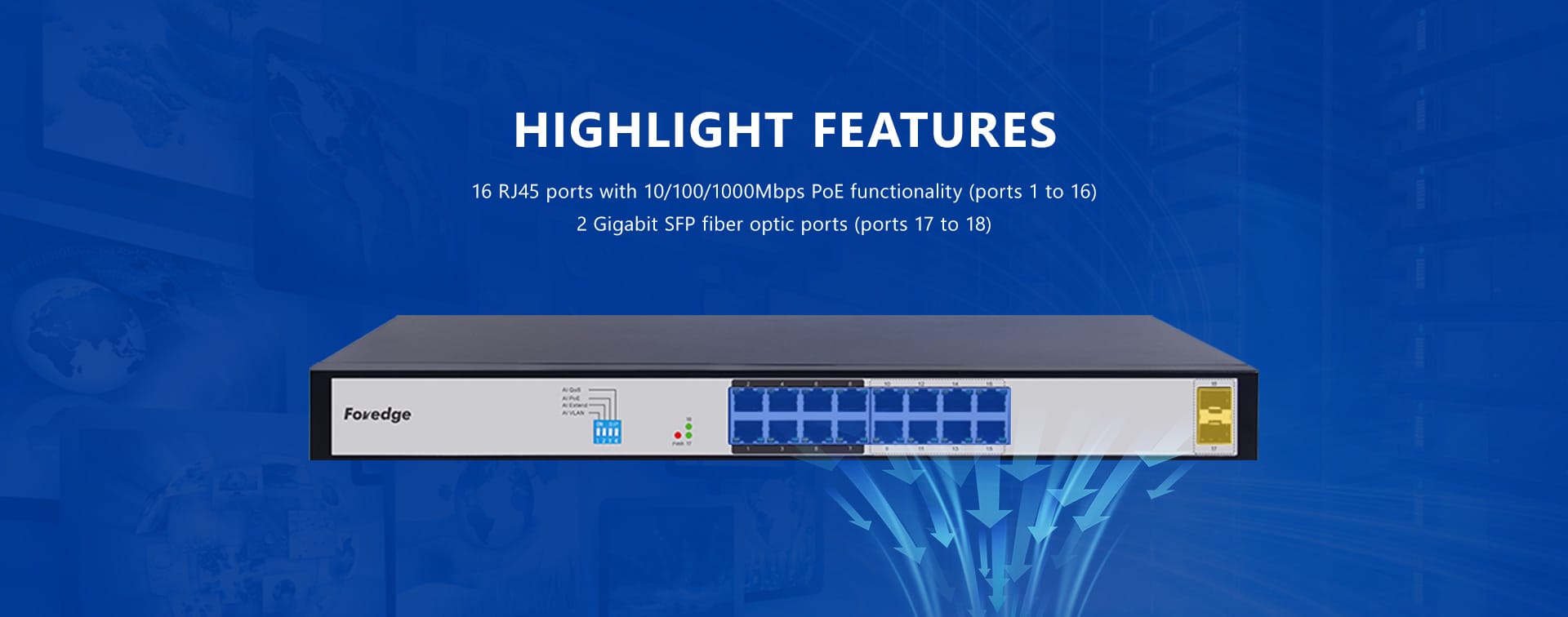

Specifications| Network Interface | ● 16 RJ45 ports with 10/100/1000Mbps PoE function (Port 1~Port 16) ● 2 gigabit SFP fiber ports (port 17~port 18) |
| Network Protocol Standard | ● IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、 IEEE 802.3ab、IEEE 802.3af、IEEE 802.3at |
| Performance Specifications | ● Backplane bandwidth: 36Gbps (non-blocking) ● Packet forwarding rate: 26.8Mpps ● MAC address table: 8K ● Forwarding mode: store and forward |
| LED Indicator | ● Power indicator: 1 ● LINK/ACT indicator: 18 ● PoE indicator: 16 |
| PoE Pin | ● 1/2( +) ，3/6(-) |
| Power Support | ● Single port maximum output power: 30W ● The maximum power of the whole machine: 150W |
| Physical Specifications | ● Dimensions (LxWxH): 440mm*180mm*44mm |
| Environmental Specifications | ● Working temperature: 0°C~40°C ● Storage temperature: -40℃ ~ 70℃ ● Working humidity: 10%~ 90% RH without condensation ● Storage humidity: 5%~90% RH without condensation |
| Safety Regulations | ● CE/ROHS/FCC/CCC |
