Specifications

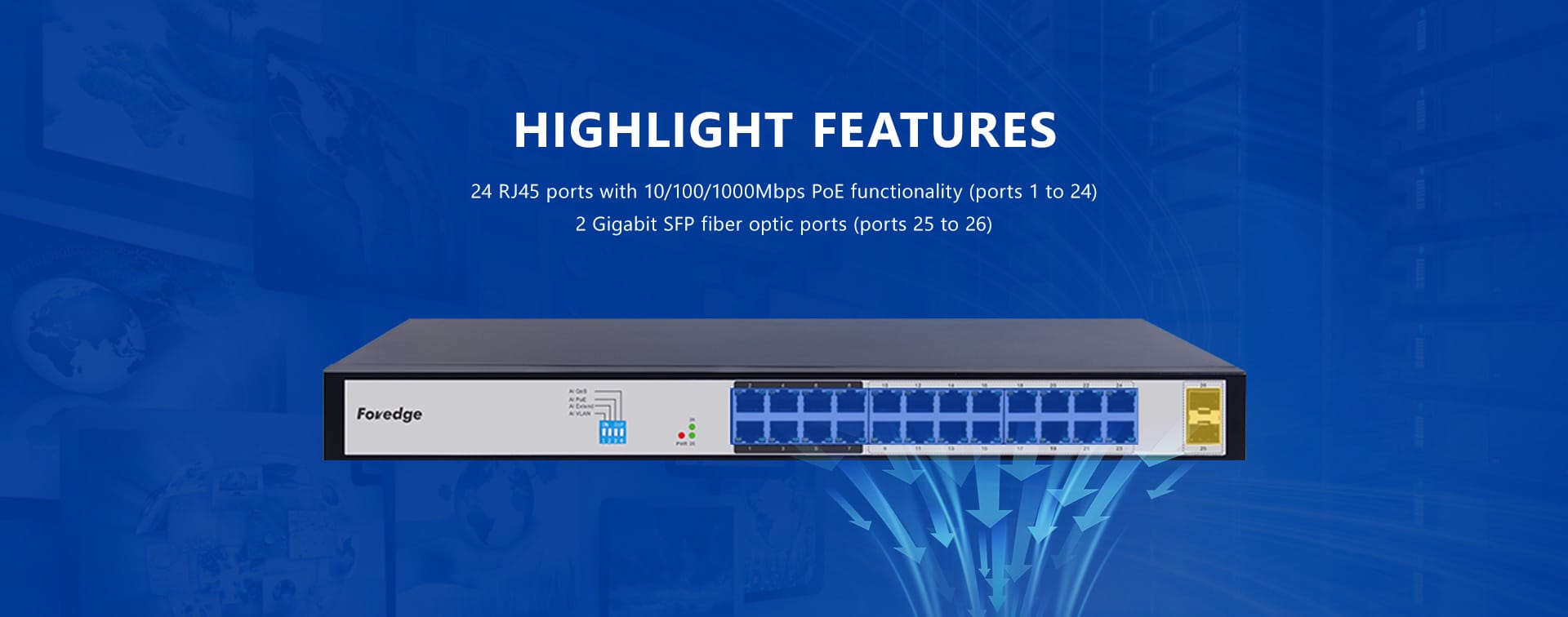

Specifications| Network Interface | ●24 * 10/100/1000M RJ45 PoE ports (Port 1~Port 24) ●2 * SFP ports (port 25~port 26) |
| Network Protocol Standard | ● IEEE 802.3i, IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at |
| Performance Specifications | ●Backplane bandwidth: 52Gbps (non-blocking) ●Packet forwarding rate: 38.7Mpps ●MAC address table: 8K ●Forwarding Mode: Store and Forward |
| LED Indicator | ● 1 Power indicator ● 24 LINK/ACT indicator ● 24 PoE indicator ● 2 SFP indicator |
| POE Pin | ●1/2(+) ，3/6(-) ； |

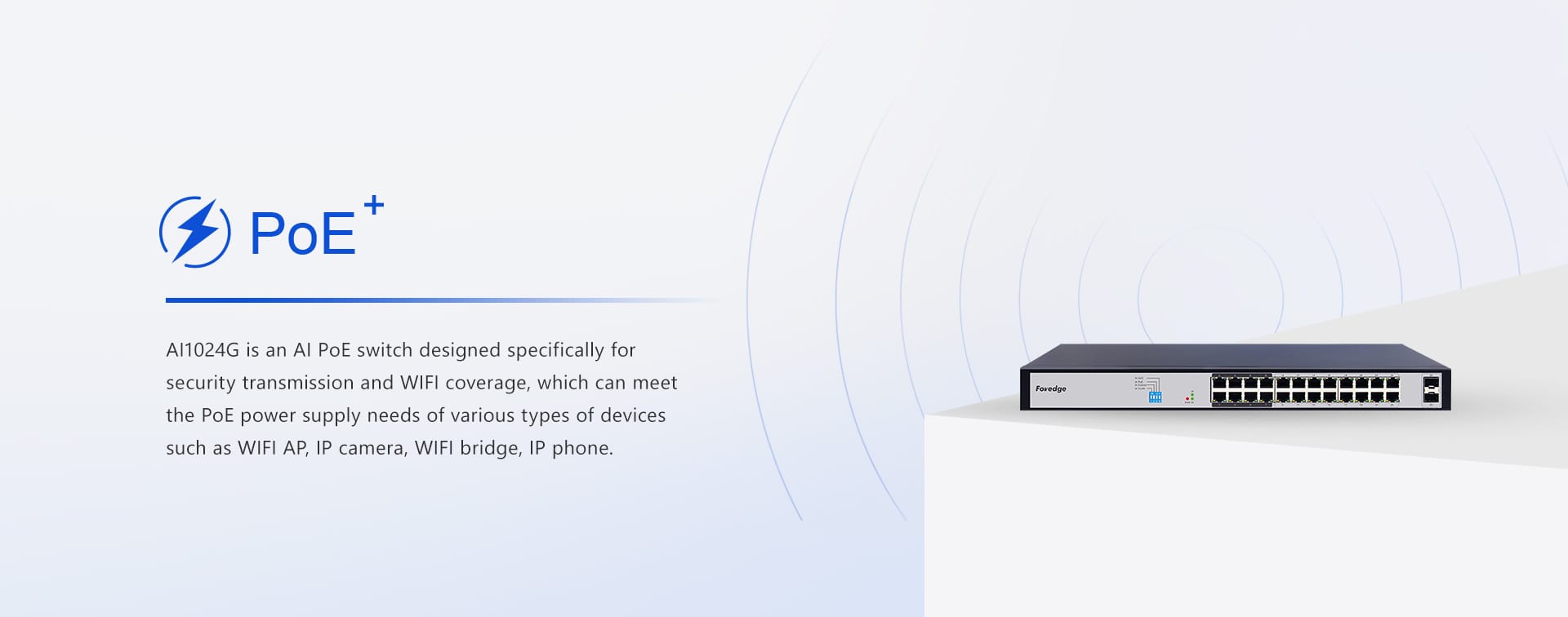

| Power Support | ●The maximum output power of a single port is 30W. ●Maximum power supply: 250W; |
| Physical Specifications | ●Dimensions (LxWxH): 440mm×180mm×44mm |
| Environmental Specifications | ● Working temperature: 0°C~40°C ● Storage temperature: -40℃ ~ 70℃ ● Working humidity: 10%~ 90% RH without condensation ● Storage humidity: 5%~90% RH without condensation |
| Safety Regulations | ●CE/ROHS/FCC |
