Specifications

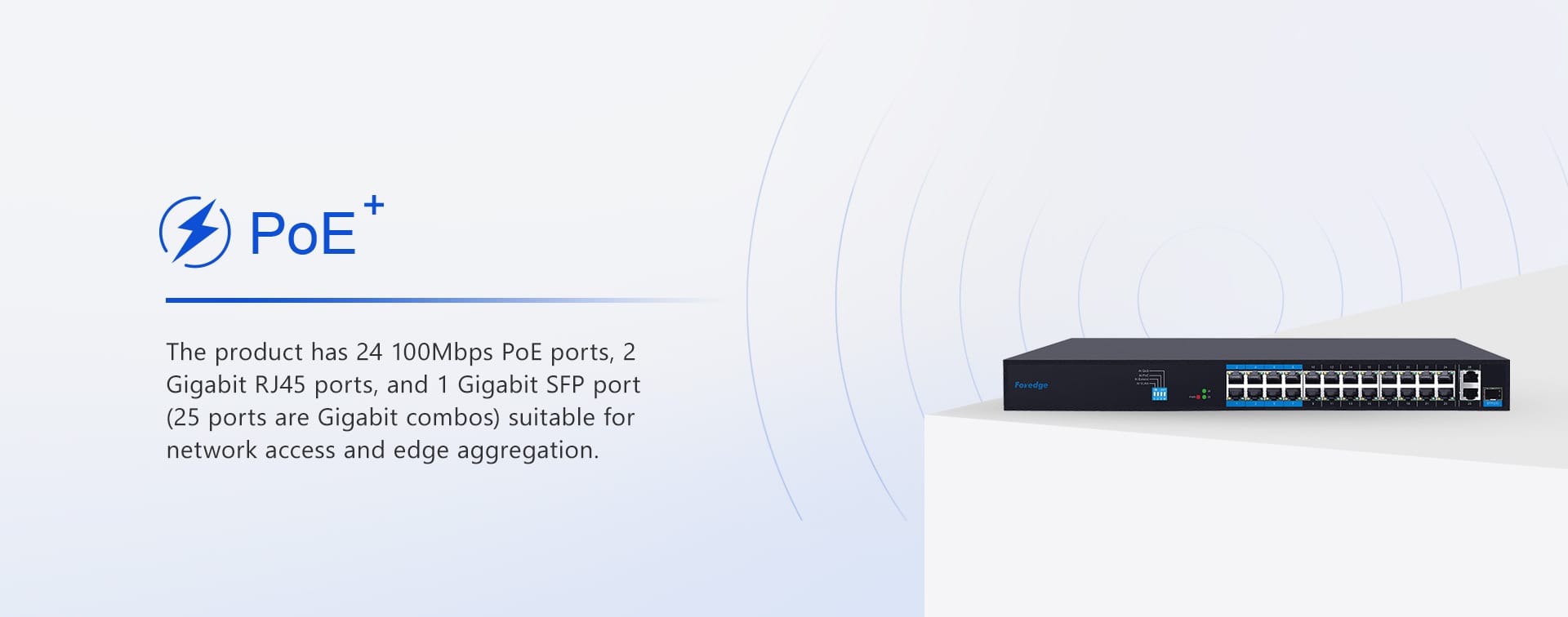

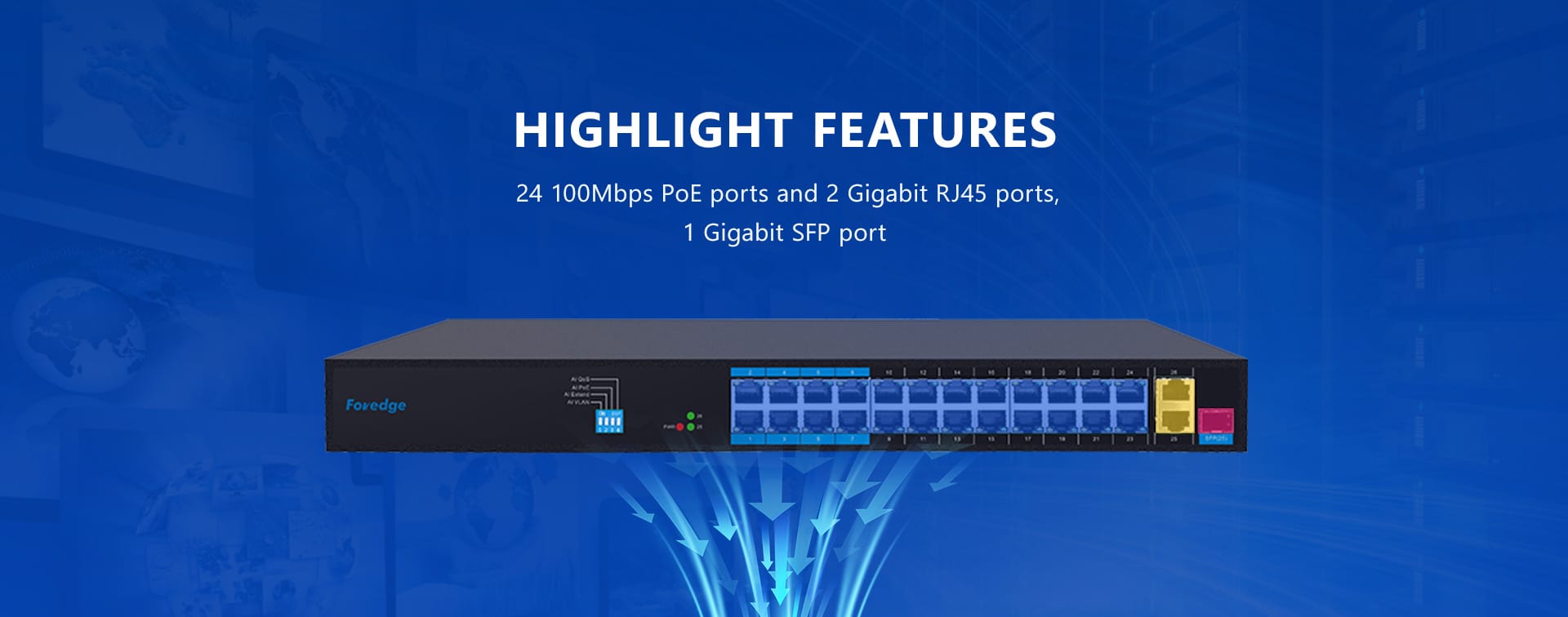

| network interface | ● 2410 / 100Mbps PoE, functional RJ 45 ports (port 1 to port 24) ● 210 / 100 / 1000Mbps non -PoE, functional RJ 45 ports (port 25 to port 26) ● 1 Gigabit SFP, optical fiber port ( reuse) |
| Network protocol standards | ● IEEE 802.3i 、 IEEE 802.3u 、 IEEE 802.3x 、 IEEE 802.3z 、 IEEE 802.3ab 、 IEEE 802.3af 、 IEEE 802.3at |

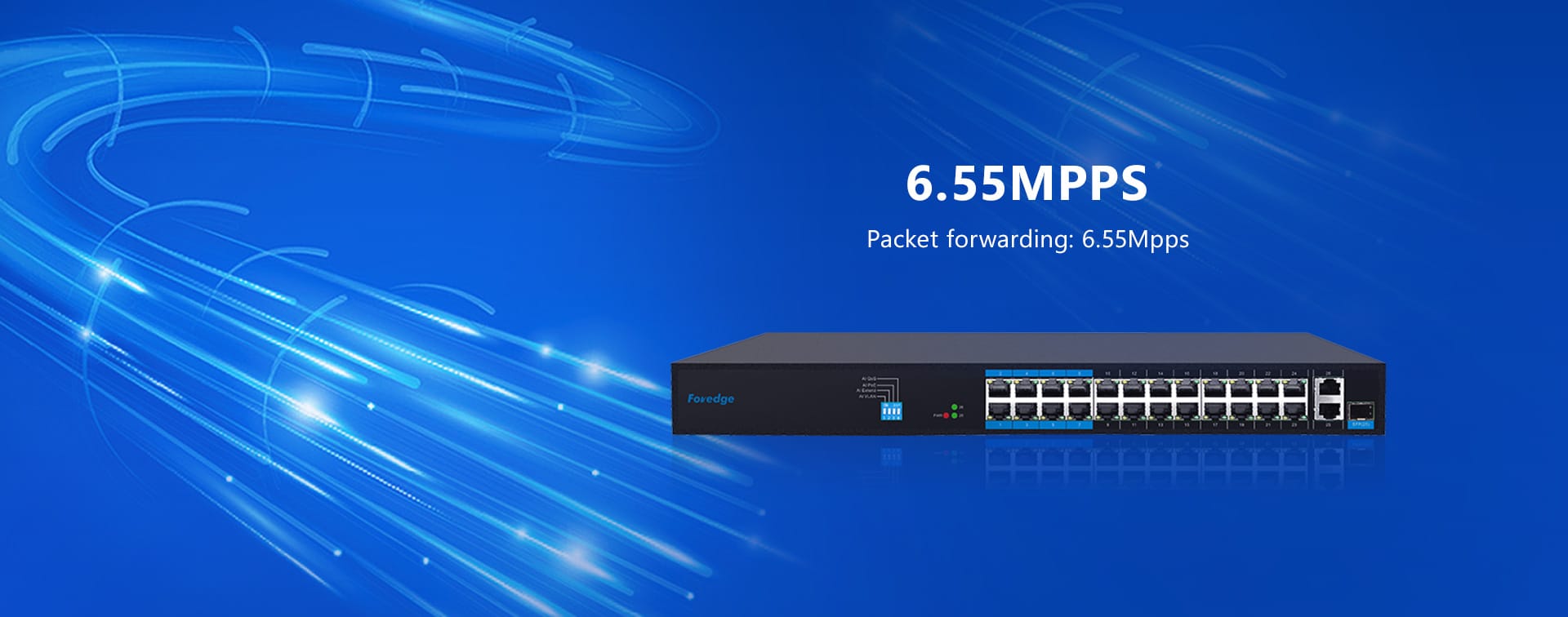

| performance specification | ● Backplane Bandwidth: 8.8 Gbps (no blocking) ● Package forwarding rate: 6.55 Mpps ● MAC, address table: 8K ● Forward mode: store and forward |
| LED, pilot lamp | ● Power supply indicator light: 1 out of it ● LINK / ACT indicator lamp: 26 indicator lamps ● PoE, indicator lamp: 24 out |
| PoE foot position | ● 1/2( +) ，3/6(-) |
| Power support | ● Maximum output power of a single port: 30W ● Maximum power supply of the whole machine: 250W |
| Physical specifications | ● Size (length, x, width, x height): 440mm * 180mm * 44mm |

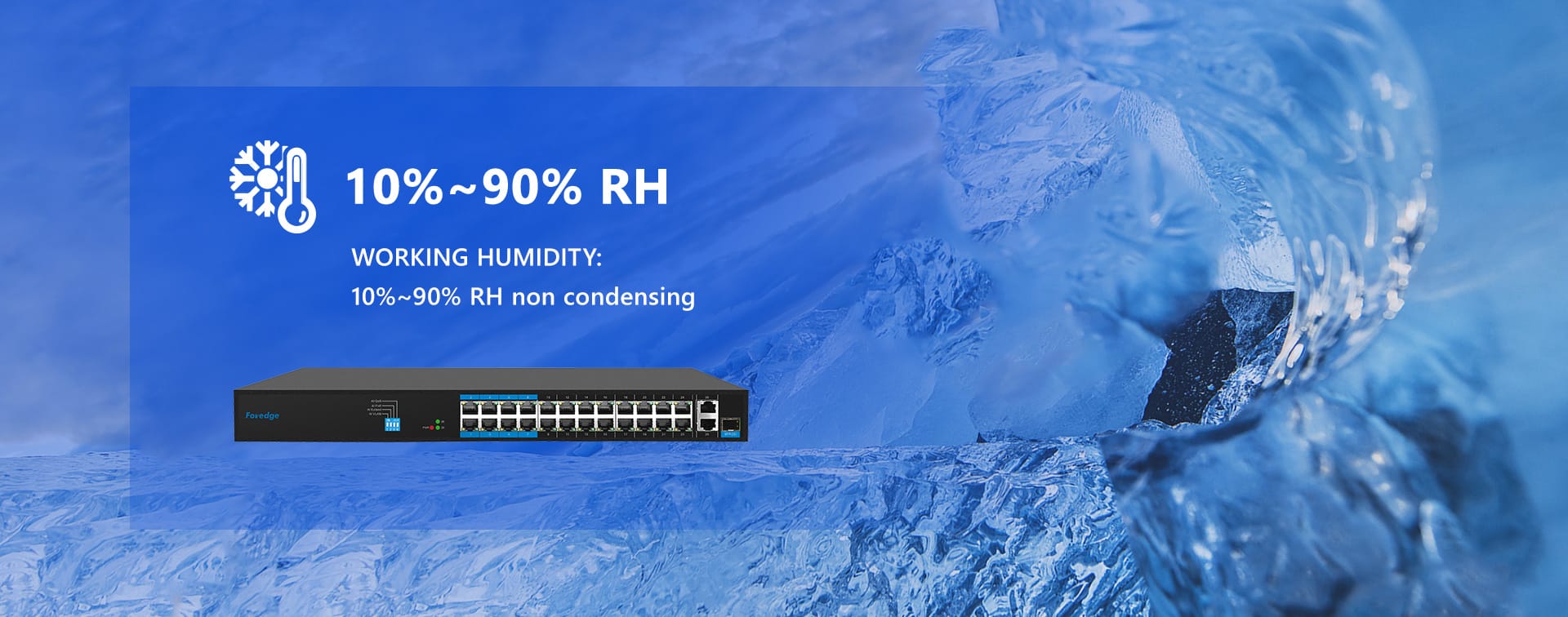

| Environmental specification | ● Operating temperature: 0°C ~40 °C ● Storage temperature: -40℃ 70℃ ● Working humidity: 10% ~ 90% RH does not condense ● Storage humidity: 5% 90% RH does not condense |
| safe code | ● CE /ROHS /FCC /CCC |
