| Item | Parameter description |

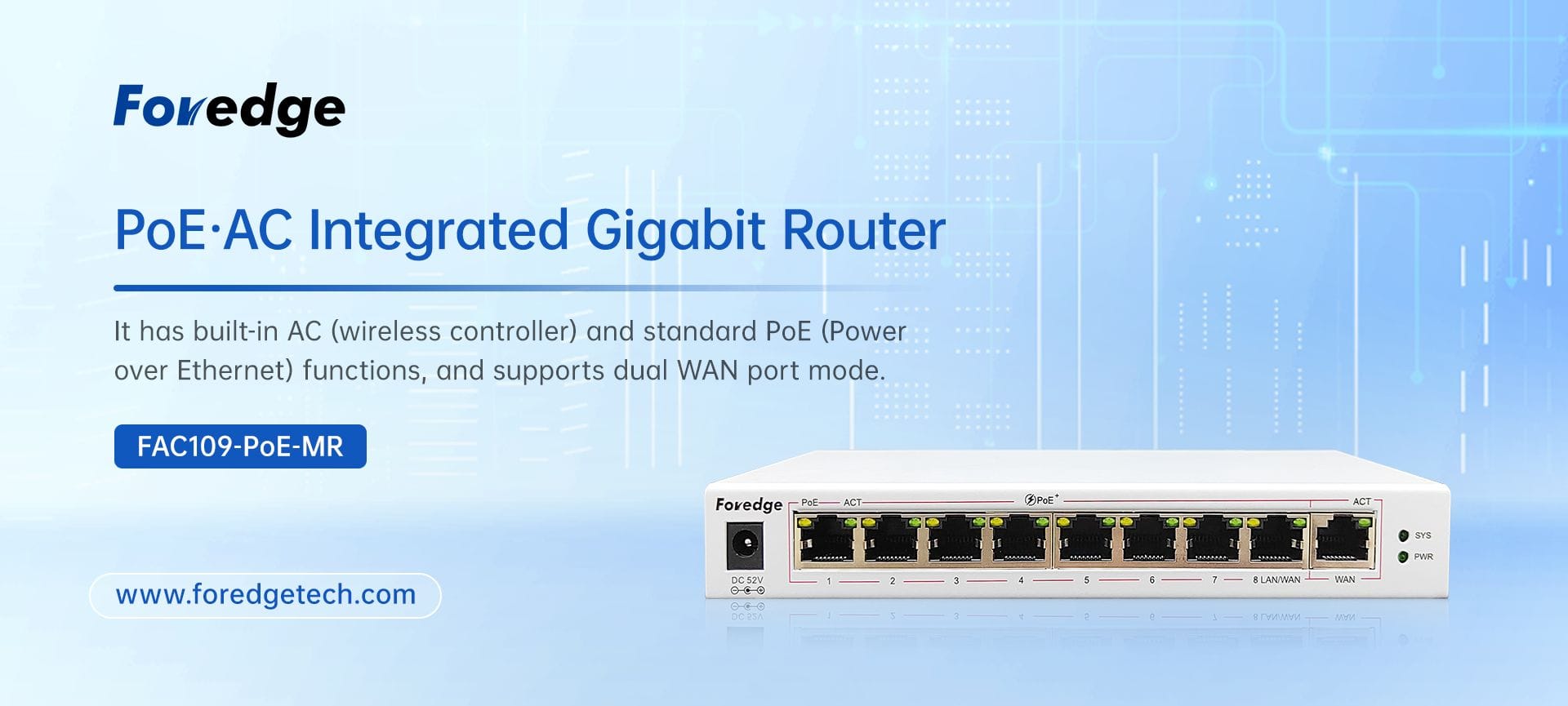

| Model | FAC109-PoE-MR |
| Bandwidth | Maximum bandwidth: 2Gbps; Recommended bandwidth: 1Gbps |

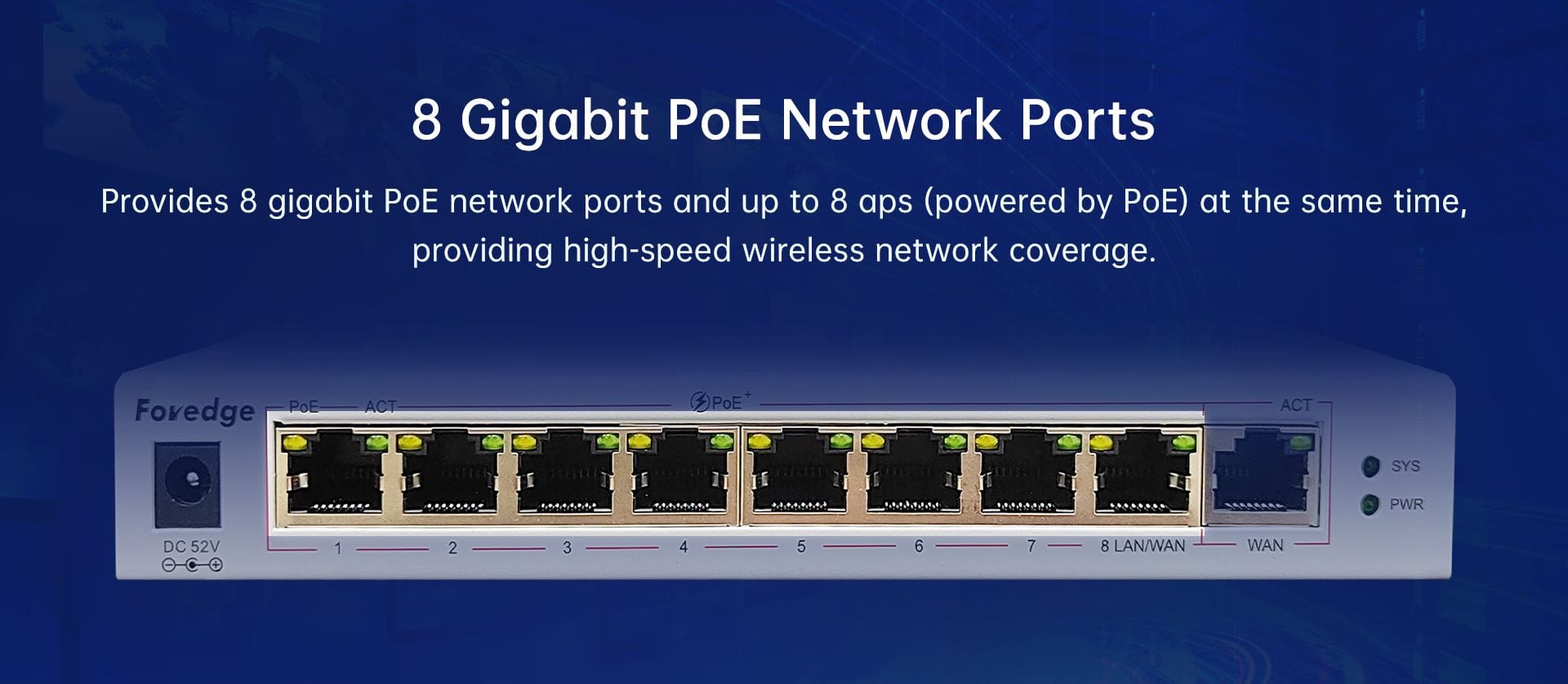

| Port | • 1 * 10/100/1000M RJ45 WAN Port • 1 * 10/100/1000M RJ45 LAN Port/WAN Port(Support PoE) • 7 * 10/100/1000M RJ45 LAN Ports（Support PoE） |
| LED | • RJ45 Port：Link/Act • Front panel：SYS、Power |
| Input power supply | • DC52V/2.5A |
| PoE | • Compliant with IEEE 802.3af and IEEE 802.3at standards • Single port maximum output 30W • Maximum output 120W |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、MQTT、DNS、DDNS |
| Running state | • Basic device information • Interface information (including connection status and flow rate) • Access cloud platform status • Hardware resource utilization (CPU, memory, PoE) • Real-time traffic information • Network topology • WAN status • LAN status |
| Network configuration | • WAN Settings (DHCP, Static IP, PPPOE), support dual WAN port backup redundancy, bandwidth overlay, traffic load balancing • LAN Settings • IPV6 Settings • DHCP • Network diagnostics |

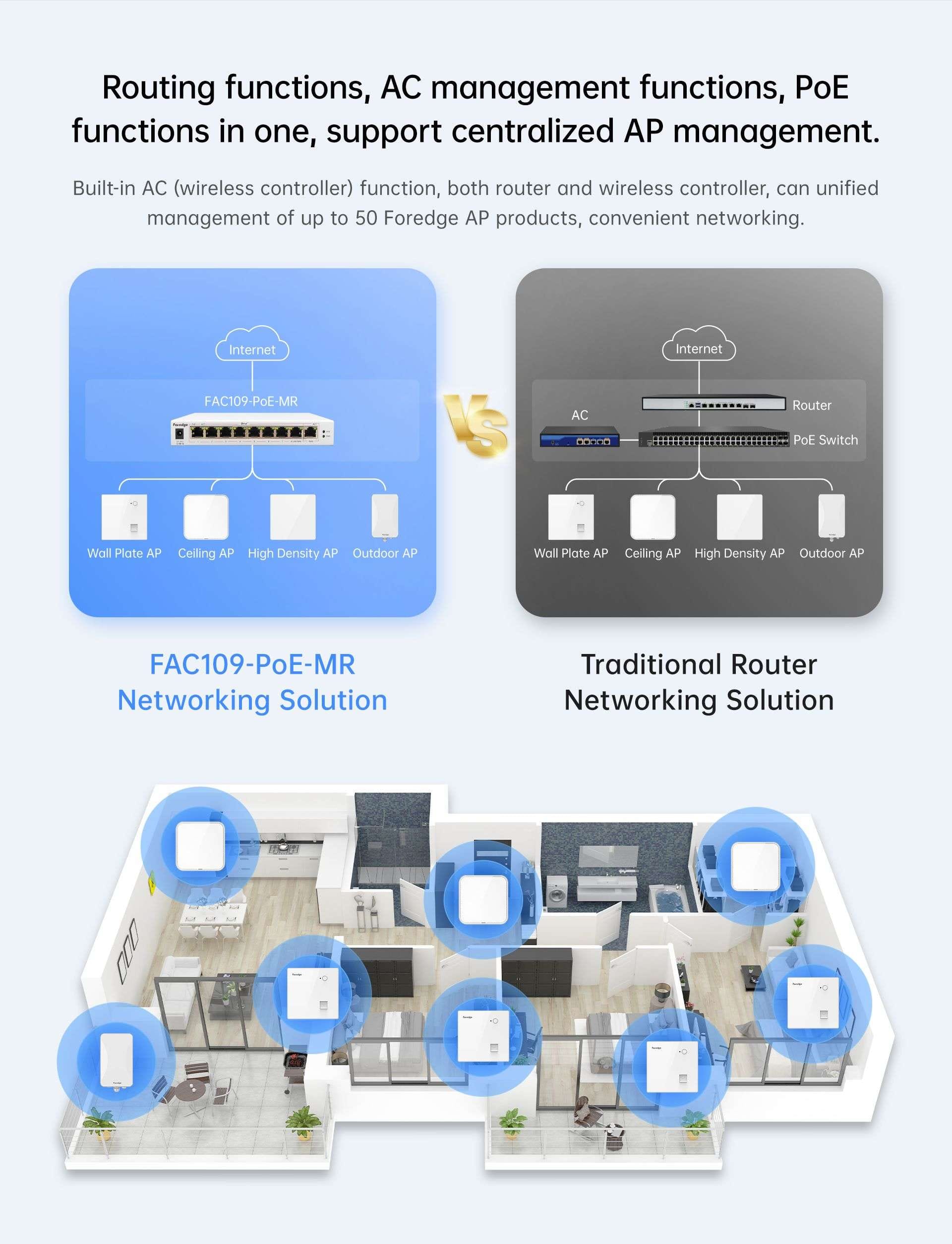

| AP centralized management | • Centralized AP management: Configure templates, AP access lists, load balancing, intelligent roaming, RF tuning, wireless network mode, and upgrade management • AP Settings, unified management of 50 Fengrunda AP products; • Plug and play; |
| Terminal management | Mask and rate limit terminal devices that access aps |
| Typical tape load | 100 units |
| Safety management | • Support Internet filtering (IP filtering, MAC filtering, port filtering, domain name filtering) • Support for application group filtering (shopping, video, games) • Supports backup redundancy for dual WAN ports Access Control Lists (ACLs) • Protect against DoS attacks |
| VPN management | • Supports PPTP VPN and L2TP VPN |
| Authentication management | • Web authentication, one-click Internet access, can provide commercial advertising marketing through the Portal page; • SMS authentication, which meets the requirements of real-name authentication, and can conduct secondary marketing based on mobile phone number; |
| Advanced function | • QoS • DDNS |
| System tool | • System time • User Management • System logs • Backup/restore • System upgrade • Restart the system |
| Heat dissipation mode | • Natural heat dissipation |
| Use environment | • Operating temperature: -20℃– 50℃, • Operating humidity: 10% — 90%RH non-condensing • Storage temperature: -40℃–70℃, • Storage humidity: 5%–90%RH non-condensing |
| Overall dimension | 185(w)x100(D)x28(H) mm |
