Specifications

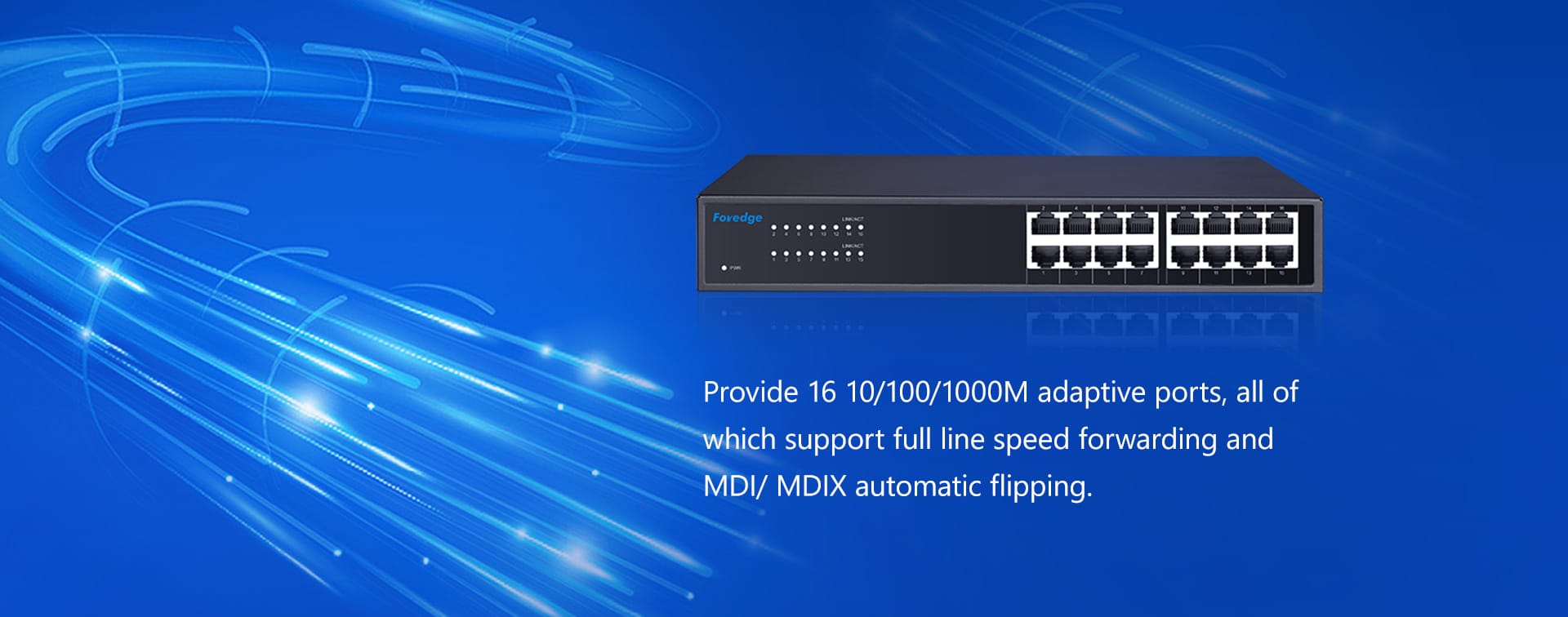

Specifications| Network Interface | ●16 * 10/100/1000M RJ45 ports (Port 1~Port 16) |
| Network Protocol Standard | ● IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、 IEEE 802.3ab |
| Performance Specifications | ●Backplane bandwidth: 32Gbps (non-blocking) ●Packet forwarding rate: 23.8Mpps ●MAC address table: 8K ●Forwarding Mode: Store and Forward |
| LED Indicator | ● 1 Power Indicator ● 16 LINK/ACT indicator |
| Power Support | ● AC 100-240V/50-60Hz |
| Physical Specifications | ● Dimensions (LxWxH): 284mm*180mm*44mm |
| Environmental Specifications | ● Working temperature: 0°C~40°C ● Storage temperature: -40℃ ~ 70℃ ● Working humidity: 10%~ 90% RH without condensation ● Storage humidity: 5%~90% RH without condensation |
| Safety Regulations | ●CE/ROHS/FCC |
