Specifications
| Hardware Specifications: | |

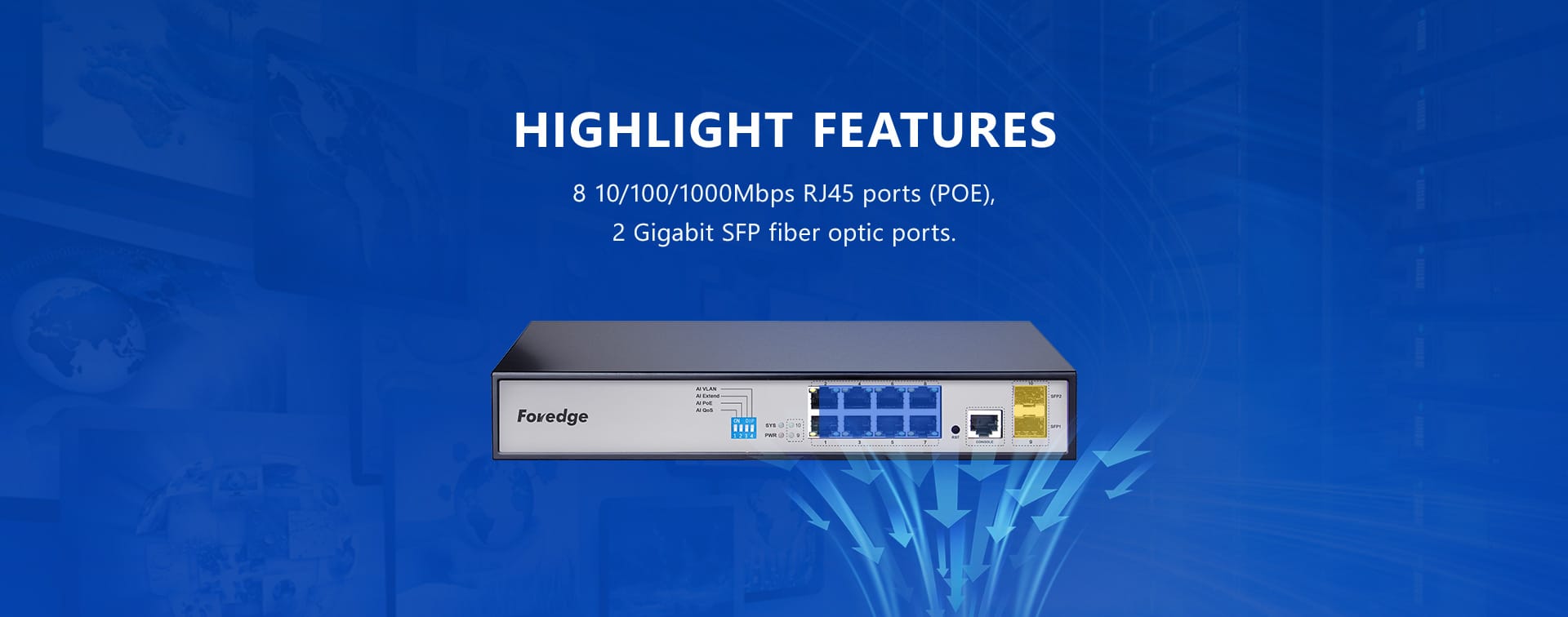

| Networking Interface | ● 8*10/100/1000Mbps RJ45 ports（ POE） ● 2*SFP ports ● 1*Console port |
| Network Protocol | ● IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, IEEE 802.3z,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p, IEEE 802.1q,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w, IEEE 802.3af,IEEE 802.3at |
| Performance | ● Bandwith ：20Gbps ● Packet forwarding rate：14.88Mpps ● MAC table size：8K ● Forwarding type：Storage and forwarding |
| LED Indicator | ● 10*Link/Act indicator ● 8*PoE indicator ● 1*Power indicator ● 1*SYS indicator |
| POE Pin | ● 1/2（ +） ，3/6 （ -） |
| Power Supplier | ● Power input：AC 100-240V/50-60Hz ● Single port MAX. power：30W ● PoE budget：150W |
| Dimension | ● W*D*H：250mm×180mm×44mm |
| Environment | ● Operating temperature：0°C~40°C ● Storage temperature：-40℃〜70℃ ● Operating humidity：10%~ 90% RH non condensing ● Storatge humidity：5%〜90% RH non condensing |
| Safte Regulation | ● CE/ROHS/FCC |
| Software Specifications: | |
|
Protocol Standard | IEEE 802.3:Ethernet media access control (MAC) IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet（ optical fiber） IEEE 802.3ad:Standard method of link aggregation IEEE 802.3x::Flow control IEEE 802.1p:LAN layer 2 qos/cos protocol related to traffic priority (multicast filtering function) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP Spanning tree IEEE 802.1s:MSTP Spanning tree IEEE 802.1w:RSTP Spanning tree IEEE 802.3af IEEE 802.3at |
| One-click Shortcut Function | AI VLAN AI Extend AIPoE AI QoS |
| DHCP | Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN,MAC VLAN ,IP VLAN Voice VLAN |
| MAC Table | Support IEEE 802.1d standard Support MAC addresses automatic learning and aging Support static, dynamic and filtered address tables |
|
Security Features | Password guard Support restricting user access based on port number, IP address and MAC address Support HTTPS,SSL V3,TLS V1,SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DOS protection Support DHCP Snooping,DHCP Attack protection Support 802.1X certification,AAA Support Port security, port isolation ，CPU protection |
| Software Specifications: | |
| PoE Management | Support PoE power limit Support PoE chip status check Support setting PoE port priority Support setting PoE power supply time period |
| ACL | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, flow rate limiting, QoS remarking |
| QoS | Supports 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, WFQ priority scheduling algorithm |
| Spanning Tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
|
Multicast | Support IGMP v1/v2 Snooping Support multicast VLAN Fast leave mechanism and querier supporting Layer 2 multicast Support multicast filtering,packets statistics,unkown multicast discarding |
| Storm Suppression | Support multicast suppression Support broadcast suppression Support unknown unicast suppression |
| LACP | Support static aggregation Support dynamic aggregation Support based on IP, MAC, mixed load balancing mode A maximum of 32 aggregation groups are supported |
| IPv6 | Support IPv6 Ping,IPv6 Tracert,IPv6 Telnet Support IPv6 SSH ,IPv6 SSL |
|
Management & Manitenance | Support WEB Managed（HTTP,HTTPS,SSL V3） Support CLI（Telnet,SSH V1/V2） Support SNMP V1/V2/V3 Support LLDP,RMON Support ARP protection,IP source guard,DoS guard Support CPU monitoring,memory monitoring Support syslog,alarm levels Support Ping,Tracert detection,cable detection |
